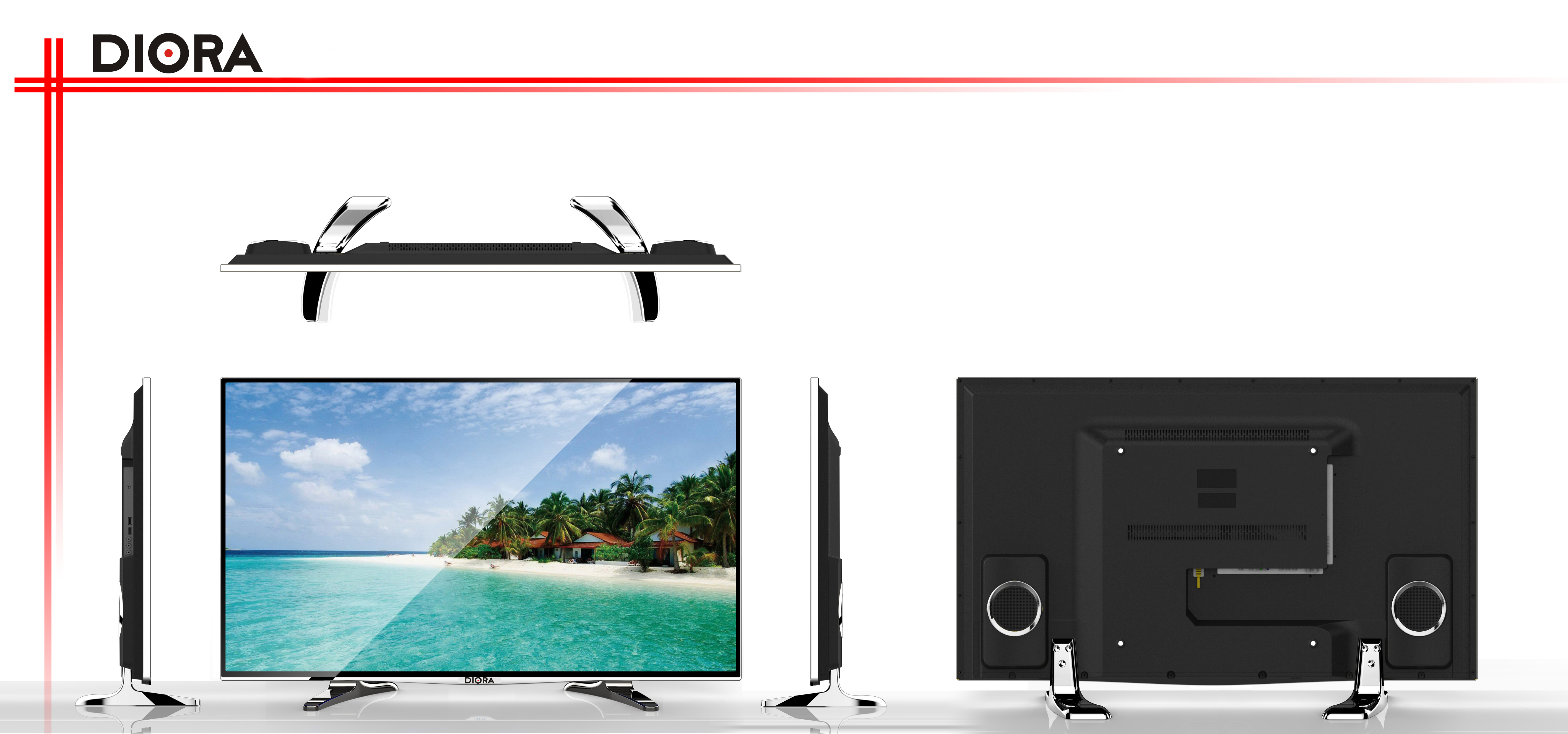

LED-E42
Basic Data 42'' LED TV
Model E42
Screen Size 42″
Viewable Display size(Panel SPEC) 42″
Description LED FHD TV
Chassis TP.SIS231.PT851
UPC
Market Intro
DISPLAY
Slim Edge Design(Up/L&R/Bottom)-Inch
Backlight Type E-LED
Panel Refresh Rate 60Hz
Clear Motion Index
Panel Resolution 1920*1080
Resolution 1080P
Dynamic Contrast Ratio 16:9
Panel Contrast Ratio 3000:1
Display Colors 16.7M
2D Center Brightness (cd/m2)-Typical 300
Viewing Angle(Horizontal/Vertical) 176/176
Response Time (Gray to Gray) 6.5ms
FEATURES
Control Buttons Power,Menu,Input,CH+,CH-,VOL-,VOL+
JPEG / MP3 for USB YES
Program Guide(EPG) YES
Auto Channel Search YES
Multilingual On–Screen–Display English/French/German/Italian/Spanish/Portuguese(Optional)
Channel Label Edit YES
Input Label Edit
Input Skip
Channel Skip YES
Closed Caption YES
Parental control (V–Chip) USA & Canada
Clock YES
Sleep Timer YES
Alarm (wake up timer) YES
Mobile High-Definition Link(MHL) NO
Time Zone selection YES
Daylight Saving Time(DST) YES
CI+ NO
MEMC YES
Demo mode for MEMC YES
Retail  mode YES
Android unit
CPU
GPU
O/S
RAM
NAND FLASH
WIFI
VIDEO
Adjustable Color Temperature YES
Picture Preset Dynamic/Standard/Mild/Personal
Adjustable Picture Control Brightness, Contrast, Sharpness, Color, Tint
Zoom Control 4:3/16:9/Zoom1/Zoom2/Point To Point
Backlight Adjust YES
Dynamic Backlight YES
Light Sensor NO
AUDIO
Audio Power (Watts)Speakers 8W*2
Balance YES
Equalizer Music,Standard,Movie,Sports,Personal
Broadcast Stereo BTSC
Multi Channel Television Sound(MTS)
Dolby Processing Dolby Digital
Surround Sound YES
CONNECTED TV
IPTV enabled NO
USB Feature
Photo  View JPEG
Audio Player MP3,WMA
Software Upgrade YES
SIGNAL FORMAT CAPABILITY
Tuner Type ATV/DTV(DVB-T/C)
PC Format Max 1920*1080@60Hz
YPbPr Format 480i,480p,576i,576p,720p,1080i,1080p
HDMI Format 480i,480p,576i,576p,720p,1080i,1080p
CONNECTIONS —Inputs/Outputs
RF Input 1
Component Video Input (YCrCb/YPrPb) 1
Composite Video Input 1
Audio Input for Component Video 1(share with AV Audio)
Audio Input for Composite 1
Audio input for VGA 1
VGA Input 1
SCART 1
HDMI Input 3
CI Input 1
USB Input 1
CVBS Output NO
Headphone Jack Output 1
Digital Audio Output (SPDIF) 1
RJ45 NO
ENERGY INFORMATION
Energy Star ES6.0
Energy Guide
Power Consumption TBD
Standby Power ≤0.5W
ACCESSORIES (INCLUDED)
User Manual with Warranty Info
Quick Start Guide(QSG)
Power Cord Type Integrated
Remote Control 1(RS22)
Remote Control Battery Two “AAA”
PRODUCT & PACKAGE INFORMATION
Carton (English/Spanish)
Product Size (WxHxD) w/ stand (inches) 963x597x205
Product Size (WxHxD) w/o stand (inches) 963x562x49
Product Weight w/ stand (lbs) 11.4
Product Weight w/o stand (lbs) 10.7
Package Size (WxHxD) (inches) 1068x172x666
Packaged Weight (lbs) 13.8
Stack Height
ISTA Compliance N/A
Container Load(No Pallet, 40H) 572
VESA MOUNTING SPECIFICATIONS
VESA Mounting
VESA Hole Pattern 400 x 400
Screw Size M6
Screw Length TBD
Screw Pitch TBD
BASE STAND SPECIFICATIONS HORN STAND
Screw Size TBD
Screw Length TBD
Screw Pitch TBD
Quantity TBD
